Malaysian Xtreme Project: October 2008

SKATE TIPS

OLLIE!
You need to be rolling with moderate speed. (the faster you're traveling when you ollie, the farther you will go.) As you're rolling, position the ball of your back foot on the tail, and place your front foot in the middle of the board. Bend your knees At the same time you must smack the tail on the ground, jump, and slide your front foot up the deck. Smacking your tail allows the front of the board to raise up off the ground, jumping allows your body to break the confines of gravity, and sliding your front foot up the board allows the deck to level out, thus raising the back of the board from the ground. Stay over the board and at the peak of your ollie you should be centered on the board, your knees bent again ready for landing. When you land, keep your knees bent to absorb the impact with the ground. Upon landing, your back foot should be on the tail, though slightly closer to the back truck bolts so as not to break the tail, and your front foot should be directly over the front bolts

NOLLIE
this trick is very similar to the ollie. It is basically a switch ollie. You use the front of the board instead of the back. To begin, place your front foot comfortably on the nose and your back foot across the middle of the board. Push down on the nose to get the pop: the harder you push, the higher you go. Now your back foot helps the board come off the ground by sliding up the board. When you feel like you've reached maximum flight, your board should have leveled out flat. Now wait until you hit the ground, and like everybody says, roll away smoothly.

manual
Go as fast as you can toward the obstacle that you're going to do the manual on. Ollie up, and land on the back wheels. Once you're up there, rest the majority of your weight on your back foot to help you get more balance. Ride it out, then drop off.

Nose manual
For this trick, all you need to do is be able to balance on your front two wheels. Approach the obstacle you're going to nose-manual on at top speed Snap the tail and ollie to enable you to get up on the terrain. While ollieing, lean forward so you land on the front two wheels. When you want to come off, nudge your body forward a little. Land back on the ground with all four wheels down, and ride away

Pop shove it
The foot placement for the pop Shove-it varies some people place there foot in a kick flip position while others just place it in a ollie position. Smack the tail down with the back foot and use your front foot to shove the board around in a 180 while your body stays stationary. Use your feet to catch the board when it has completed the 180 and slam the board down.

kickflip
Set up in the ollie position. Your front foot should be back towards the heel edge of the board and the front of your shoe should be just behind the centermost mounting bolts of the front truck. Do an ollie, but rather than only sliding your front foot upward and forward, you must also slide your foot to the heel side to start your board in a spin. This action requires you to actually kick your front foot off of your board; the last point of contact between the front of your shoe and the board should be in that little concaved dip just before the nose. When you see the grip again, stop the rotation with your back foot, then put that front foot back on, right on top of them bolts, and land.

heelflip
This trick is very similar to the Kickflip but the board spins in the opposite direction. Set up in the ollie position. Your front foot should be towards the toe edge of the board and the back of your shoe should be just behind the centermost mounting bolts of the front truck. Do an ollie, but rather than only sliding your front foot upward and forward, you must also slide your foot to the toe side to start your board in a spin. This action requires you to actually kick your front foot off of your board; the last point of contact between the front of your heel and the board should be in that littl

Sunday, October 26, 2008

Tapak Arena Xtreme Labuan

Berita gembira buat peminat Sukan Xtreme Labuan, Pihak Perbadanan Labuan telah bersetuju untuk membina arena Xtreme yang dijangkan dalam pembinaan akhir tahun ini.

lokasi arena tersebut terletak berdekatan dengan gelanggang futsal tg. purun. Pembinaan permainan tersebut akan meliputi permainan 3 dalam 1 iaitu skateboarding, inline skate dan BMX. Kos yang belum diketahui lagi dianggarkan menelan belanja RM200k.

Diharapkan dengan siapnya arena ini dapat menaikan semangat golongan remaja yang meminati sukan xtreme agar dapat memberikan satu cabaran dan memajukan sukan xtreme keperingkat yang tinggi lagi. Dalam perlaksnan arena ini diharapkan agar jangan diabaikan perancangan atau penganjuran berupa pertandingan agar explori dapat diketengahkan kepada atlet dan ini juga membantu atlet sentiasa bersedia dalam menghadapi cabaran pertandingan yang sebenar.

Tahniah Perbadanan Labuan! Maju Sukan Xtreme!

Saturday, October 25, 2008

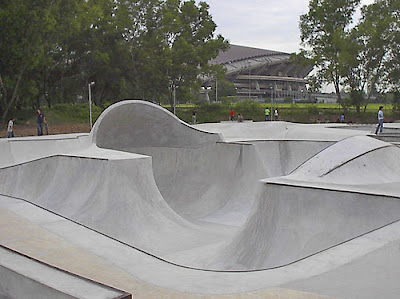

Skate Park terbaik dunia

Antara skate park terbaik dunia kini terletak di Shah Alam, pembinaan dan rekaan dibuat oleh Tim Altic salah seorang skaters 70'an. Pembinaan ini dibuat menggunakan Konkrit yang mana keluasaannya adalah 23,000 kaki persegi. Rekaan taman ini adalah 3 dalam 1 yang mana merangkumi permainan Street Skatebording, Blade/inline Skate dan juga BMX. Beruntung sungguh warga dan peminat sukan xtreme disebelah sana! Tahniah juga buat pihak berkuasa yang peka dan bersungguh-sungguh mempromosikan sukan tersebut dipersada dunia! Maju Sukan Xtreme untuk semua!!

Thursday, October 23, 2008

fun box

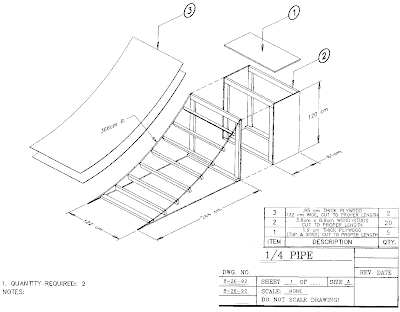

vert

launch ramp

dropping

Skateboard Ramps

tips dan keselamatan

tips membina ramp

beberapa faktor yang harus di ikuti untuk memulai pembinaan ramp menggunakan kayu. perancangan reka bentuk, keadaan persekitaran, ketahanan kayu, jenis cat yang sesuai, dan faktor penting adalah kos.

Keselamatan

pastikan keselamatan semasa pembinaan projek yang berkaitan di patuhi sebelum membuat sesuatu projek, ini dapat membantu mengurangi risiko kemalangan yang tidak di ingini.

Dimensional Lumber Sizes

stair ledges

perhatikan gambar rajah.

untuk ketahanan impak hentakan, pastikan kerapatan tetulang amat penting.

Small ledge - Bottom - How to make a Tri Ledge

Frame bawah

Medium Ledge - Bottom - How to make a Tri Ledge

frame atas

Medium Ledge - Top - How to make a Tri Ledge

tepi

Medium Ledge - Sides - How to make a Tri Ledge

atas

Medium Ledge - Top - How to make a Tri Ledge

lapisan papan plywood

Medium Ledge - Plywood - How to make a Tri Ledge

frame bawah

Large Ledge - Bottom - How to make a Tri Ledge

frame atas

Large Ledge - Top - How to make a Tri Ledge

tepi

Large Ledge - Bottom - How to make a Tri Ledge

atas

Large Ledge - Sides - How to make a Tri Ledge

Penggunaan paku amat merbahaya, sebaiknya gunakan skrew.

Large Ledge - Plywood - How to make a Tri Ledge

Bolting on the Small Ledge - How to make a Tri Ledge

Untuk penyambungan ramp sila gunakan bolt nut yang sesuai agar ramp tidak mudah teralih dan sebagai penahan impak semasa bermain.

Bolt Close Up - How to make a Tri Ledge

Bolting on the Large Ledge - How to make a Tri Ledge

Finished Three Level Ledge

untuk railing gunakan batang besi seperti gambar rajah.

Grind Box Coping Drilled

dah pun siap..selamat mencuba

Finished Three Level Ledge

kicker ramp plan

Mulakan dengan 2x4's. potong sebanyak 10 keping bersaiz 3'-10 1/2 lebar .

Potong tepi

Sides - How to make a Kicker Ramp

Saiz terpulang dengan kemahuan anda. Tetpi untuk ini, anda perlu potong dengan ukuran seperti gambar rajah.

buat tulang rangka dibawah

Bottom - Sides - How to make a Kicker Ramp

saiz 2×4

rangka di atas

Top -Sides - How to make a Kicker Ramp

lapis dengan plywood tebal

Plywood - Sides - How to make a Kicker Ramp

tutup dengan papan plywood tebal(1/5 inci) lebar 4' x 6'-2 panjang. Biarkan papan plywood melebihi saiz terus kebawah(lihat gambar rajah)

lapisan papan masonite

Untuk mengantikan lapisan massonite cat jenis urethane dan polyurethane adalah digalakan untuk ketahanan ramp dari bahang matahari dan hujan.

Masonite - Sides - How to make a Kicker Ramp
